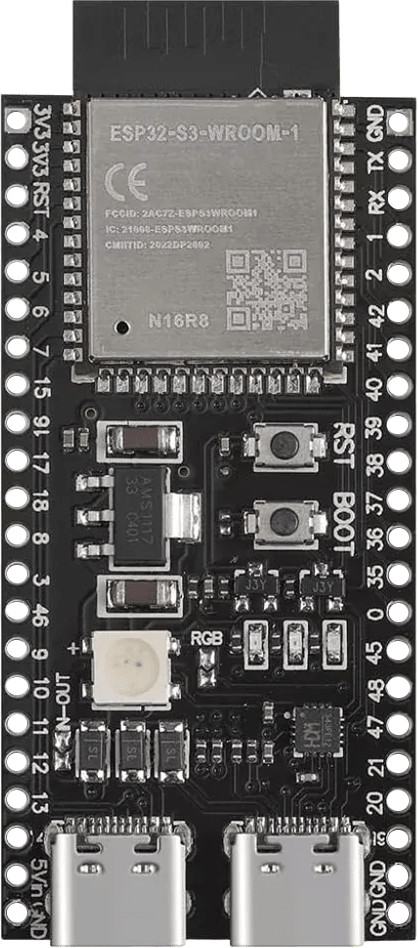

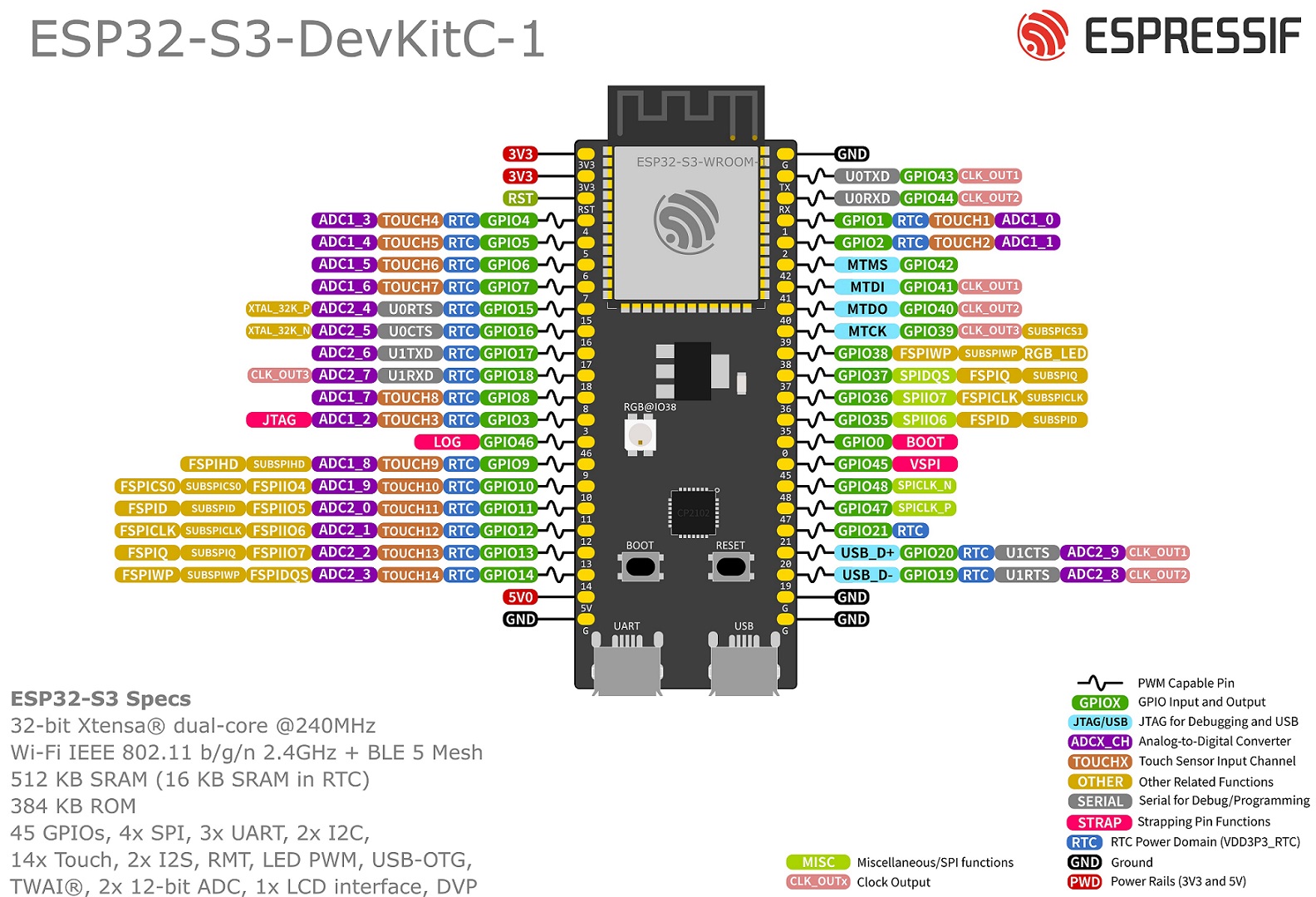

ESP32 S3 WROOM-1 N16R8 16MB PSRAM 8MB Pinout:
- SPI principal (
FSPI) - SPI_ID=1
| Nombre normal |
Nombre en tabla |
Pin J3 (No.) |
Pin Name |
| CS/SS |
FSPICS0 |
16 |
GPIO 10 |
| MOSI/SDA/SDI |
FSPID |
17 |
GPIO 11 |
| SCK/CLK |
FSPICLK |
18 |
GPIO 12 |
| MISO/SDO |
FSPIQ |
19 |
GPIO 13 |
3,5” TFT SPI 480x320 v1.0 ILI9488 Pinout:
| Nombre normal |
Nombre en tabla |
Pin J3 & J1 (No.) |
Pin Name |
| MISO/SD0 |
FSPIQ |
19 |
GPIO 13 |
| LED |
—————- |
J1 = 2 |
3V3 |
| SCK/CLK |
FSPICLK |
18 |
GPIO 12 |
| SDI/MOSI/SDA |
FSPID |
17 |
GPIO 11 |
| DC/RS |
—————- |
6 |
GPIO 6 |
| RESET |
—————- |
7 |
GPIO 7 |
| CS/SS |
FSPICS0 |
16 |
GPIO 10 |
| GND |
GND |
44 |
GND |
| VCC |
3V3 |
J1 = 1 |
3V3 |
SPI SD with MicroPython SDCard Class Pinout:
| Nombre normal |
Nombre en tabla |
Pin (No.) |
Pin Name |
| SD_CS |
GPIO 5 |
5 |
GPIO 5 |
| SD_MOSI |
GPIO 18 |
11 |
GPIO 18 |
| SD_MISO |
GPIO 17 |
10 |
GPIO 17 |
| SD_SCK |
GPIO 16 |
9 |
GPIO 16 |

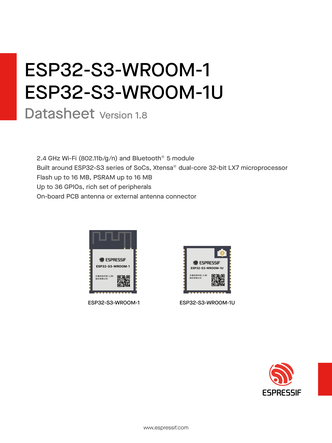

ESP32 S3 WROOM-1 Datasheet:

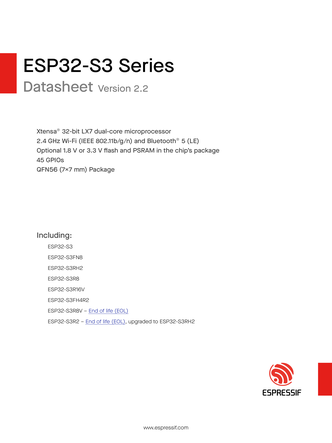

ESP32 S3 Series Datasheet:
ESP32 S3 Technical Reference Manual:
ESP32 S3 Hardware Design Guidelines:
