ILI9488_Driver_MicroPython

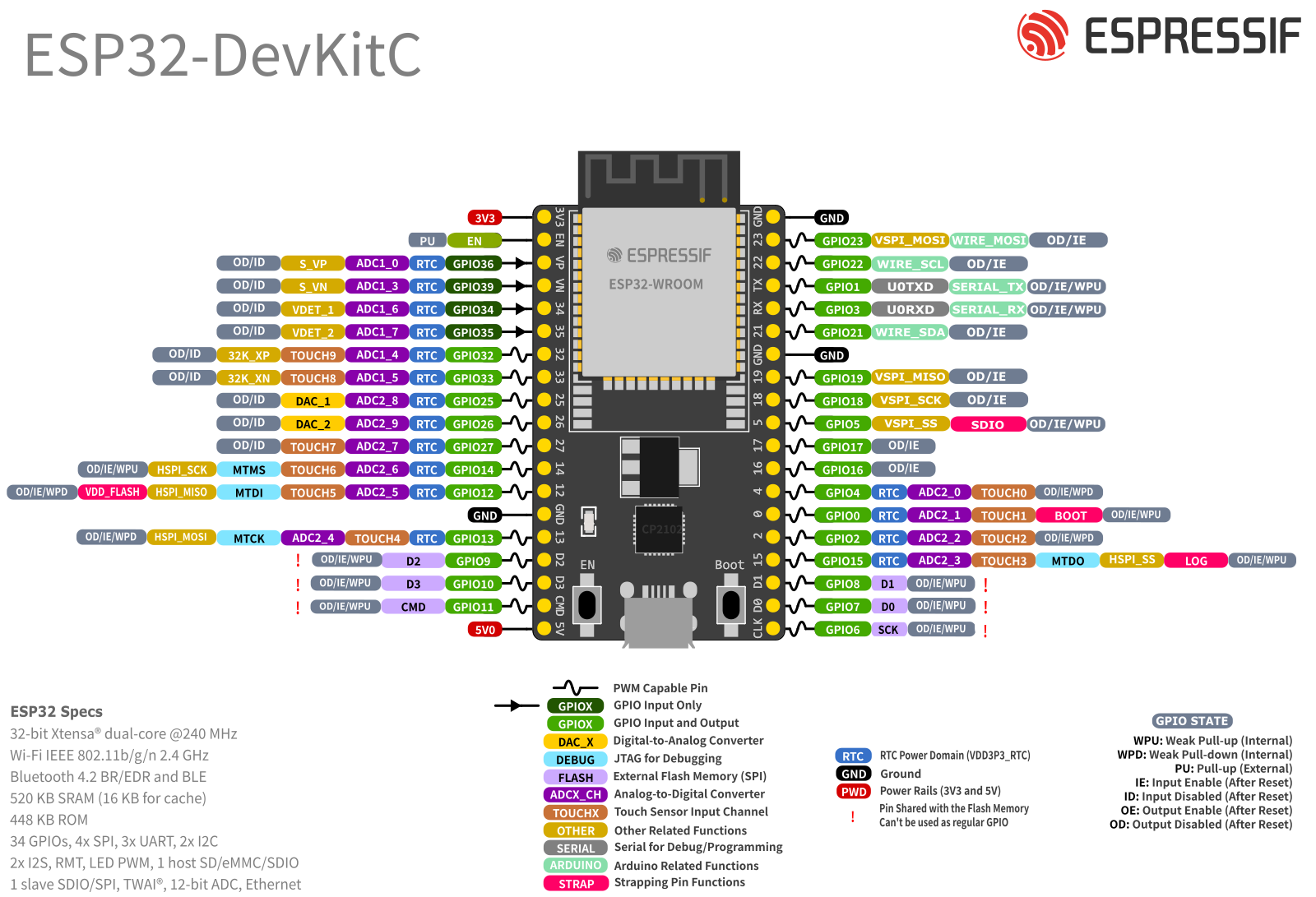

ESP32-WROOM-32D Pinout:

ESP32-WROOM-32D Datasheet
ESP32-WROOM-32D Docs

---

• SPI principal (FSPI) - SPI_ID=1

---

Nombre normal	Nombre en tabla	Pin (No.)	Pin Name
CS/SS	FSPICS0	23	GPIO 15
MOSI/SDA/SDI	FSPID	15	GPIO 13
SCK/CLK	FSPICLK	12	GPIO 14
MISO/SDO	FSPIQ	8	GPIO 33

---

3,5” TFT SPI 480x320 v1.0 ILI9488 Pinout:

Nombre normal	Nombre en tabla	Pin (No.)	Pin Name
MISO/SD0	FSPIQ	8	GPIO 33
LED	—————-	26	GPIO 4
SCK/CLK	FSPICLK	12	GPIO 14
SDI/MOSI/SDA	FSPID	15	GPIO 13
DC/RS	—————-	27	GPIO 16
RESET	—————-	28	GPIO 17
CS/SS	FSPICS0	23	GPIO 15
GND	GND	38	GND
VCC	3V3	1	3V3

---

SPI SD with MicroPython SDCard Class Pinout:

---

Nombre normal	Nombre en tabla	Pin (No.)	Pin Name
SD_CS	HSPICS0	29	GPIO 5
SD_MOSI	HSPID	37	GPIO 23
SD_MISO	HSPICLK	31	GPIO 19
SD_SCK	GPIO 33	30	GPIO 18

---

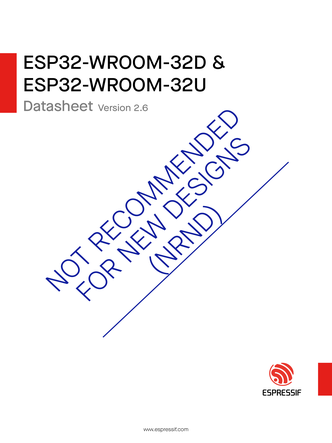

ESP32 WROOM-32D Datasheet:

ESP32 Series Datasheet:

ESP32 Technical Reference Manual:
