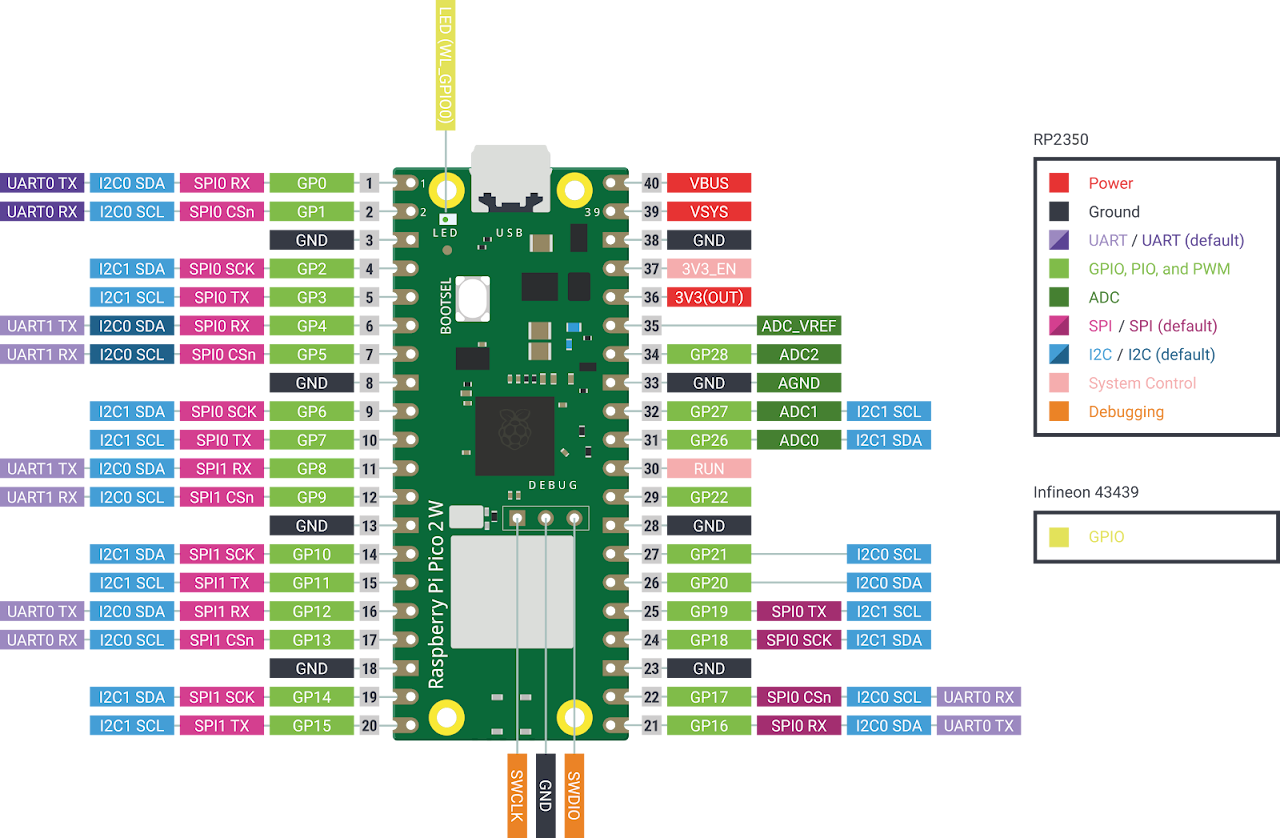

Raspberry Pi Pico 2W Pinout:
- SPI principal (
SPI) - SPI_ID=1
| Nombre normal |
Nombre en tabla |
Pin (No.) |
Pin Name |
| CS/SS |
SPI0 CSn |
17 |
GPIO 13 |
| MOSI/SDA/SDI |
SPI1 TX |
20 |
GPIO 15 |
| SCK/CLK |
SPI1 SCK |
19 |
GPIO 14 |
| MISO/SDO |
SPI1 RX |
16 |
GPIO 12 |
3,5” TFT SPI 480x320 v1.0 ILI9488 Pinout:
| Nombre normal |
Nombre en tabla |
Pin (No.) |
Pin Name |
| MISO/SD0 |
SPI1 RX |
16 |
GPIO 12 |
| LED |
————— |
37 |
GPIO 22 |
| SCK/CLK |
SPI1 SCK |
19 |
GPIO 14 |
| SDI/MOSI/SDA |
SPI1 TX |
20 |
GPIO 15 |
| DC/RS |
————— |
9 |
GPIO 6 |
| RESET |
————— |
10 |
GPIO 7 |
| CS/SS |
SPI0 CSn |
17 |
GPIO 13 |
| GND |
GND |
18 |
GND |
| VCC |
3V3 |
36 |
3V3 (OUT) |

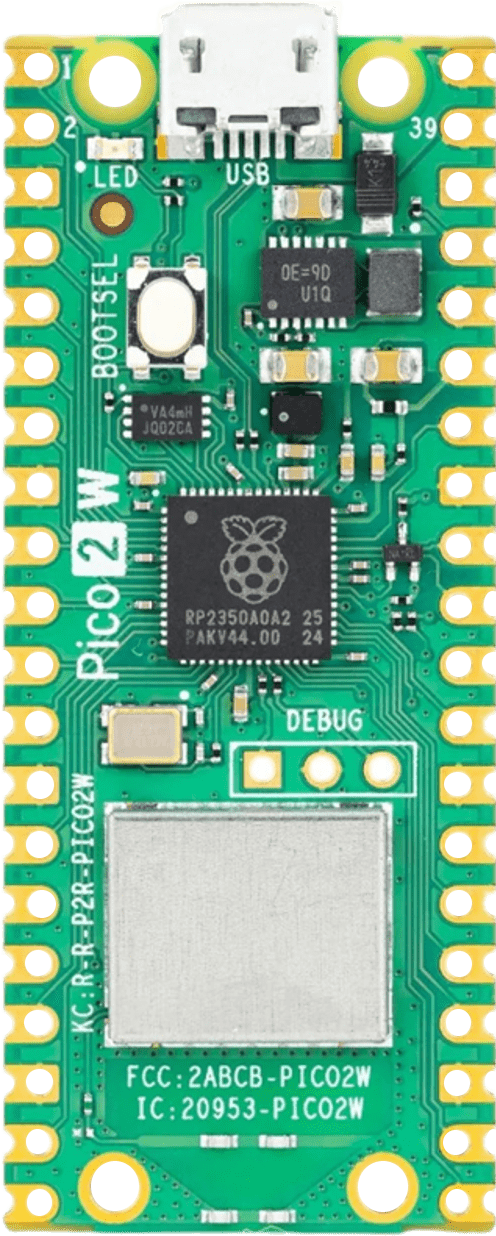

Raspberry Pi Pico 2W Datasheet:
