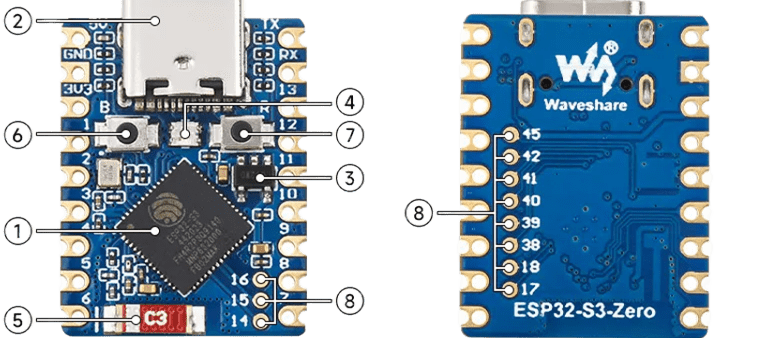

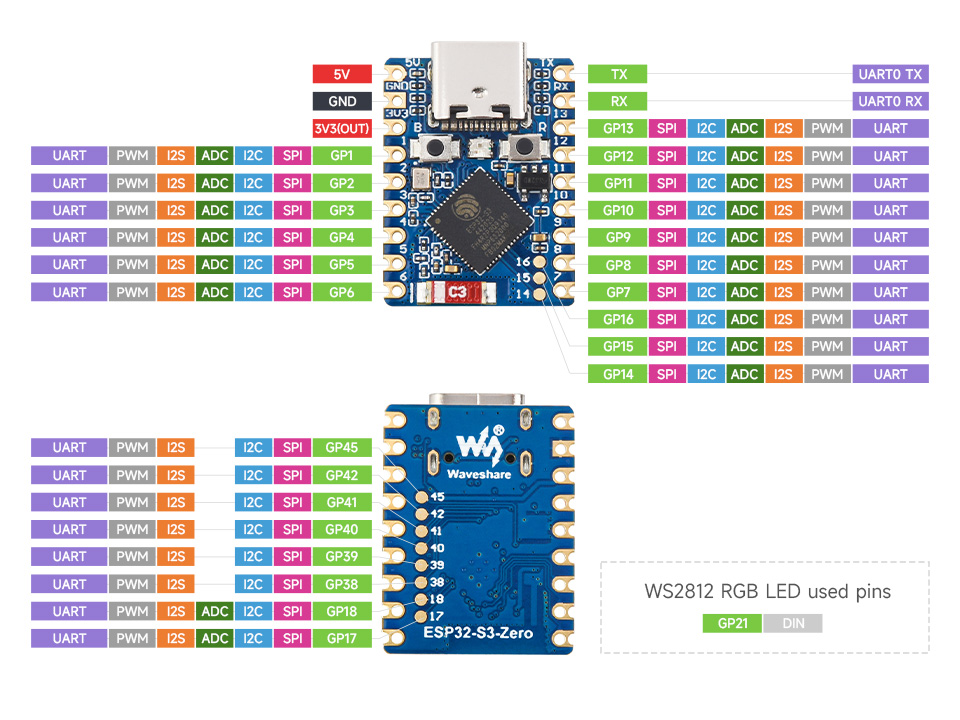

Waveshare ESP32-S3 Zero Pinout:

ESP32 S3 Datasheet
Waveshare ESP32-S3 Zero Wiki

---

• SPI principal (FSPI) - SPI_ID=1

---

Nombre normal	Nombre en tabla	Pin J3 (No.)	Pin Name
CS/SS	FSPICS0	13	GPIO 10
MOSI/SDA/SDI	FSPID	14	GPIO 11
SCK/CLK	FSPICLK	15	GPIO 12
MISO/SDO	FSPIQ	16	GPIO 13

---

3,5” TFT SPI 480x320 v1.0 ILI9488 Pinout:

Nombre normal	Nombre en tabla	Pin (No.)	Pin Name
MISO/SD0	FSPIQ	16	GPIO 13
LED	—————-	8	GPIO 5
SCK/CLK	FSPICLK	15	GPIO 12
SDI/MOSI/SDA	FSPID	14	GPIO 11
DC/RS	—————-	9	GPIO 6
RESET	—————-	10	GPIO 7
CS/SS	FSPICS0	13	GPIO 10
GND	GND	2	GND
VCC	3V3	3	3V3(OUT)

---

SPI SD with MicroPython SDCard Class Pinout:

---

Nombre normal	Nombre en tabla	Pin (No.)	Pin Name
SD_CS	GPIO 1	4	GPIO 1
SD_MOSI	GPIO 2	5	GPIO 2
SD_MISO	GPIO 3	6	GPIO 3
SD_SCK	GPIO 4	7	GPIO 4

---
